White label integration

White label integration allows you to use TrustBuilder to secure your applications without showing the TrustBuilder brand. Users only see your company’s branding, your logos and your colors. TrustBuilder runs in the background as the authentication engine.

A white-label integration can include:

• Mobile authentication
  Integrate TrustBuilder authentication features into your mobile application using Trustbuilder Android or iOS SDK.

• Web authentication page AVAILABLE SOON
  Integrate TrustBuilder authentication features into a web application using Trustbuilder Web SDK.

• Custom login portal
  Provide your users with a portal that handles the web authentication experience.

• User management

  • Self-care → users manage their authentication methods

    Admin management → administrators manage users authentication methods

The authentication logic and API interactions are handled by TrustBuilder, while your applications control the look and feel.

Main phases

1. API credentials: Get API credentials (Client ID / Client Secret) to communicate with TrustBuilder.

2. Application and Policies configuration in Trustbuilder admin portal:

   • Declare your custom applications and create a custom internal authentication method

   • Define registration policies and configure authorization rules.

   • Connect your business application

3. User provisioning:

   • SCIM

   • API

   • JIT

4. Technical Integration:

   • Embed TrustBuilder SDKs into mobile and/or web apps

   • Connect a custom login portal

5. Operations management: Manage authentication flows, transaction confirmations, user self-care, and administrative operations.

1. API credentials

Create OAuth M2M application

To generate access tokens and access APIs, login to Trustbuilder admin portal and first create an OAuth application with the following settings:

• Application type: Machine to machine

• Subject: Not used (you can select any value)

• API & Scopes: Internal API --> Click Open and then Select all

• Authentication methods: Client secret Basic

• Authorization policy: Not used (you can select any value)

• Access token: RS256

Once the application is created, you will obtain: Client ID and the Client Secret.

⚠️ Make sure to securely save the Client Secret as it will not be displayed again after creation.

These credentials (Client ID and Client Secret) are then used to generate access tokens, which allow your application to call the TrustBuilder APIs.

Generate an access token

The OAuth application you have previously created has a unique token endpoint. This must be used to generate an access token:

1. In TrustBuilder Admin portal, click on the OAuth application created.

2. Go to the Endpoints tab.

3. Copy the OAuth Token endpoint.

4. To request an access token, make a POST call to the token endpoint.

   CODE

   grant_type=client_credentials
   client_id=YOUR_CLIENT_ID
   client_secret=YOUR_CLIENT_SECRET

   The response includes:

   • access_token → to be used in API requests to Trustbuilder

   • expires_in → token lifetime in seconds

   • token_type →Bearer

5. The successful response includes access_token, token_type and expires_in values.

6. The access token value should be included in API requests:
   Authorization: Bearer ACCESS_TOKEN
   By default, the access token is valid for 900 seconds. You can adjust the lifetime in the TrustBuilder Admin Portal, under the Security Settings tab of the OAuth application.

2. Application and Policies configuration

In Trustbuilder admin portal:

• Create a custom app mobile

  • Once created, an appID will be generated. It will be needed it the SDK app integration.

• Create a custom portal app

• Create a custom authentication method

• Configure registration policy

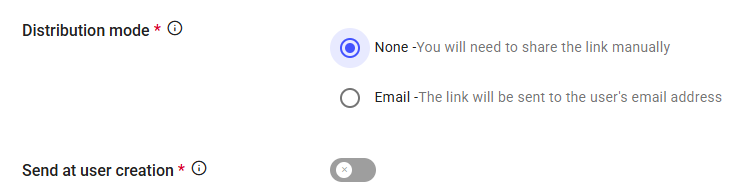

  • For white label integration, set the distribution mode to None and disable Send at creation to prevent users from receiving Trustbuilder registration emails.



• Configure authorization policy

• Connect a Service Provider (business app with and without transaction confirmation - CIBA)

3. User provisioning

• SCIM: use the SCIM protocol to synchronize your identity directory with the platform in real time.
  See SCIM provisioning

• API: call the REST user management endpoints

  See API documentation - Users

• Just-In-Time provisioning
  See OIDC IdP integration

4. Technical integration

The technical integration phase consists in embedding TrustBuilder authentication capabilities into your applications using SDKs and APIs.

Trustbuilder SDKs

Integrate TrustBuilder authentication directly into your application:

• TrustBuilder mobile SDKs

  • Android

  • iOS

• Trustbuilder Web SDK AVAILABLE SOON

Custom login portal

The custom portal acts as the bridge between the user interface and the authentication backend (Trustbuilder). It handles the web authentication experience. It must be developed and hosted on your side.

Authentication request (Out-of-Band)

Out-of-Band (OOB) authentication is when a user receives an authentication request on a separate device (mobile app) to approve a login or transaction. In this case, the custom login portal calls Trustbuilder APIs to track authentication requests status and then display the right screens to users.

API endpoints:

• Send authentication notification to user devices
  /api/v1/mfa/login/tenants/{tntAlias}/auth-sessions/{authSessionId}/outofband-request

• Check the status on ongoing authentication sessions
  /api/v1/mfa/login/tenants/{tntAlias}/auth-sessions/{authSessionId}/status

• Retrieve redirection information after user authentication
  /api/v1/mfa/login/tenants/{tntAlias}/auth-sessions/{authSessionId}/get-auth-code

The interactions between the custom login portal and TrustBuilder are described in the Operations section below.

Authentication Method selection

The custom login portal can displays the available authentication methods to users to allow them to choose and send the chosen method to Trustbuilder.

API endpoints:

• Retrieve authentication methods for a user
  /api/v1/sso/registration/enroll/users/{user_id}/method-selection

• Send to Trustbuilder the selected authentication method for a user
  /api/v1/sso/registration/enroll/users/{user_id}/select-method

The interactions between the custom login portal and TrustBuilder are described in the Operations section below.

Trustbuilder Authenticator Web SDK AVAILABLE SOON

The custom login portal can embed TrustBuilder Authenticator Web SDK to implement browser-based authentication directly in your portal.

5. Opérations

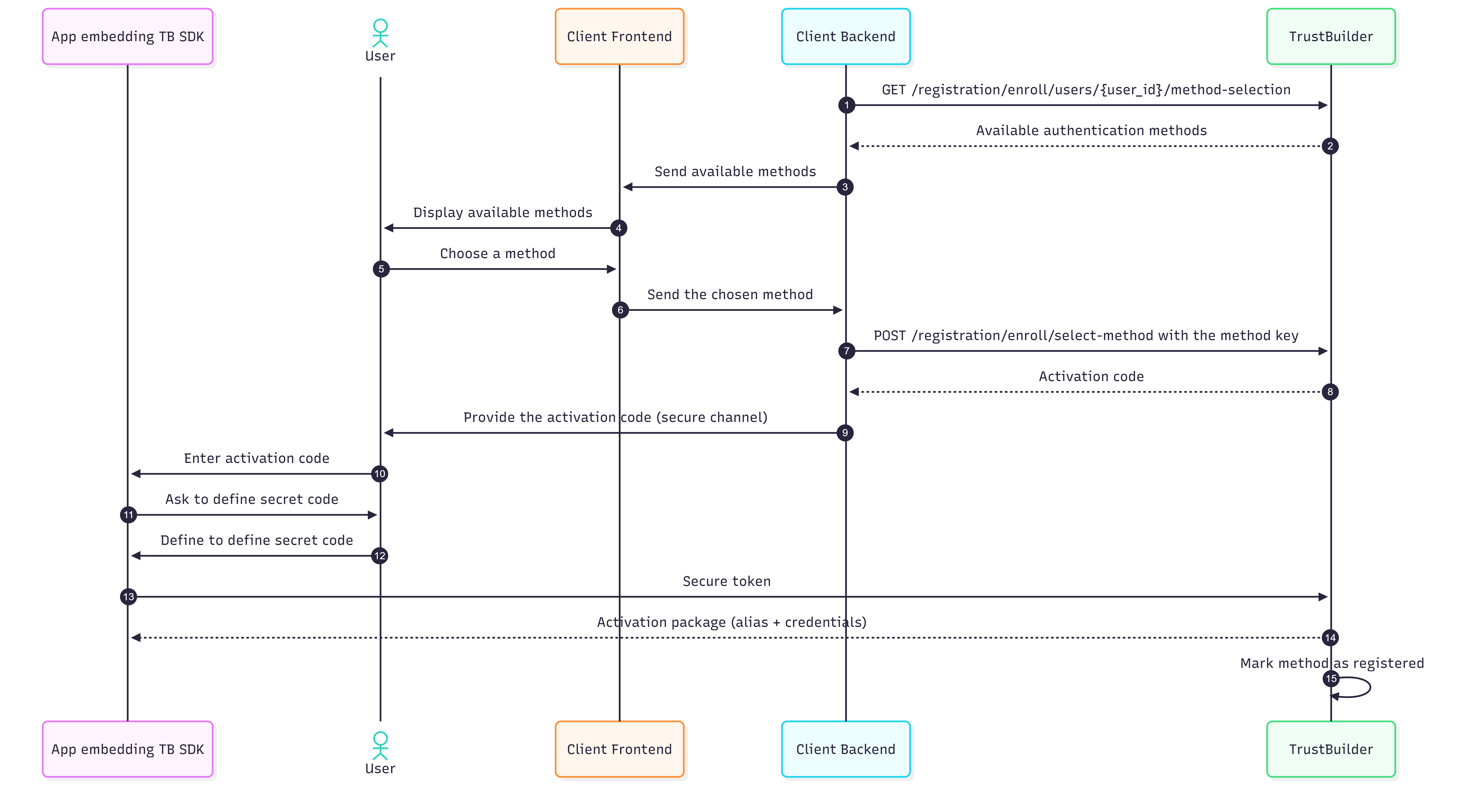

User first registration

User first registration is the process that allows a user to register an authentication method for the first time and define their secret code.

Actors:

• User: the user who wants to register an authentication method to authenticate securely.

• Client Backend: the server-side component of your application. It communicates with TrustBuilder APIs and sends data to the frontend.

• Client Frontend: the web interface used by the user. It displays available authentication methods, collects the user’s choices, guides the user through enrollment.

• SDK App: a mobile or web application integrating the TrustBuilder SDK. It performs the technical enrollment steps, exchanges cryptographic material with TrustBuilder.

• TrustBuilder server: It stores user identities, applies registration policy, manages authentication methods and generates activation packages and credentials.

We assume that:

• a Trustbuilder tenant has been configured with enrollment policy defined and relevant authentication methods configured and enabled;

• The user has been provisioned in Trustbuilder and is pending for a first registration;

• A backend application is allowed to call Trustbuilder APIs.

• One or more mobile/web applications are developed using Trustbuilder SDK.

1. The client backend requests Trustbuilder the available authentication methods for a user. /api/v1/sso/registration/enroll/users/{user_id}/method-selection

2. Trustbuilder search for the authorization policy and authentication methods available for this user.
   It sends back the available authentication methods for the user.

3. The client backend sends the available authentication methods to frontend.

4. The client frontend displays the available authentication method to the user.

5. The user chooses an authentication method.

6. The client frontend sends the chosent authentication method to backend.

7. The client backend sends the authentication method key to Trustbuilder. /api/v1/sso/registration/enroll/select-method

8. Trustbuilder sends back an activation code to client backend.

9. The client backends provides to the user the activation code using the secure communication channel of their choice.

10. The user retrieves the activation code and enter it in the app integrating Trustbuilder SDK.

11. The user is asked to define a secret code - based on the Trustbuilder Authenticator settings.

12. The user defines their secret code.

13. The app embedding Trustbuilder SDK requires Trustbuilder to recognize it as a secure token for the user to authenticate.

14. Trustbuilder sends back an activation package, containing a unique alias and credentials that will be used for the future authentications.

15. Trustbuilder successfully ends the registration process. The user can use this authentication method to authenticate.

Authentication with SDK mobile app (OOB)

COMING SOON
