Forgerock OpenAM

This is the procedure to integrate inWebo multi factor authentication service with "Forgerock OpenAM" authentication solution.

Prerequisites

OpenAM version 13.0.0
SSOAdminTools
Tomcat 7
Oracle Sun JDK 1.7
(JCE) Unlimited Strength Jurisdiction Policy Files

Installation

Download the setup package here : Resources downloads#Connectors(plugins)

Follow the below steps to install the connector:

BASH

$ unzip package -d /tmp/openam-ui-inwebo
$ sudo cp /tmp/openam-ui-inwebo/edit-webapp/WEB-INF/lib/*.jar /path/to/tomcat/webapps/openam/WEB-INF/lib/
$ sudo cp /tmp/openam-ui-inwebo/edit-webapp/config/auth/default/* /path/to/tomcat/webapps/openam/config/auth/default/
$ sudo cp /tmp/openam-ui-inwebo/edit-webapp/js/* /path/to/webapps/openam/js/
$ sudo echo password > /tmp/pwd.txt
$ sudo chmod 400 /tmp/pwd.txt
$ sudo ssoadm create-svc -u amadmin --password-file /tmp/pwd.txt --xmlfile /tmp/openam-ui-inwebo/config/amAuthInWeboAuth.xml -v
$ sudo ssoadm register-auth-module -u amadmin -f /tmp/pwd.txt -a org.forgerock.openam.inwebo.InWeboAuth -v
$ sudo /etc/init.d/tomcat restart

$ echo "Only if you use new Login Page (XUI)"
$ sudo rm -rf /opt/tomcat/webapps/openam/XUI/*
$ sudo cp -R /tmp/openam-ui-inwebo/edit-webapp/XUI/* /path/to/webapps/openam/XUI/

Configuration proxy with tomcat and inWebo OpenAm

edit /path/to/tomcat/bin/setenv.sh and add:

XML

export JAVA_OPTS="$JAVA_OPTS -Dhttp.proxyHost=localhost -Dhttp.proxyPort=3128 -Dhttp.proxyUser=proxyuser -Dhttp.proxyPassword=proxypass"

inWebo service configuration

Downloading a certificate for your service

Log in to the inWebo administration console.
Navigate to the appropriate service view.
Go to Secure Sites and click on the Download a new certificate for the API button.
Remember to set the Certificate Authentication option to Yes.

Configuration of the inWebo Secure Site

To allow inWebo authentication on your OpenAM server page, you must add a new Web Service type secure site. To do so:

go to inWebo administration console→Secure Sites
add a new secure site of type Web Services connector

The format of the called URL should be:

XML

http(s)://{OPENAM_HOST}/openam/UI/Login //if you are using the openAM UI
http(s)://{OPENAM_HOST}/openam/XUI //if you are using the openAM XUI

The default authentication form values are:

Form name: Login
Login field name: IDToken1
Password field name: IDToken2

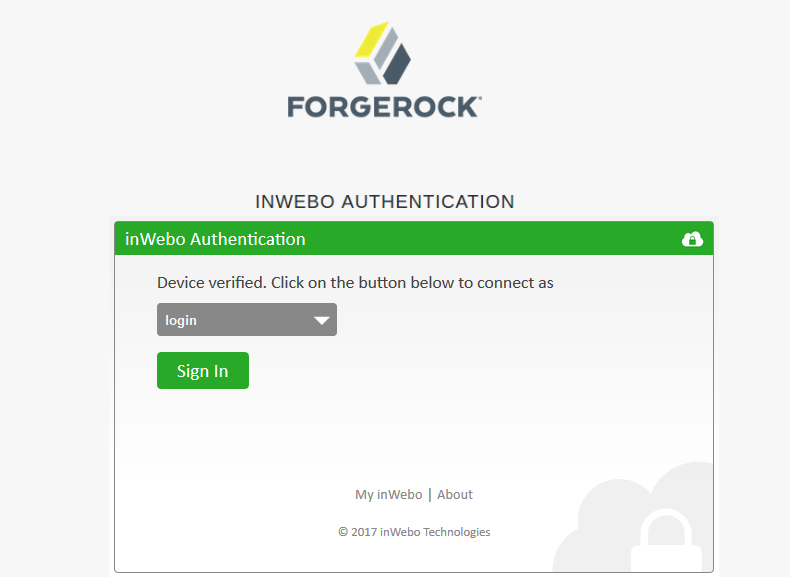

1. With UI:

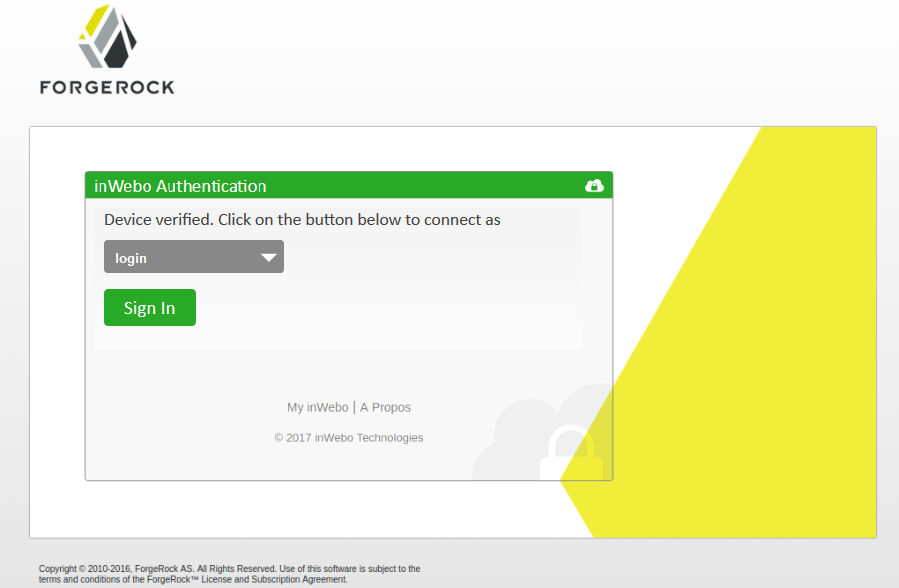

2. With XUI:

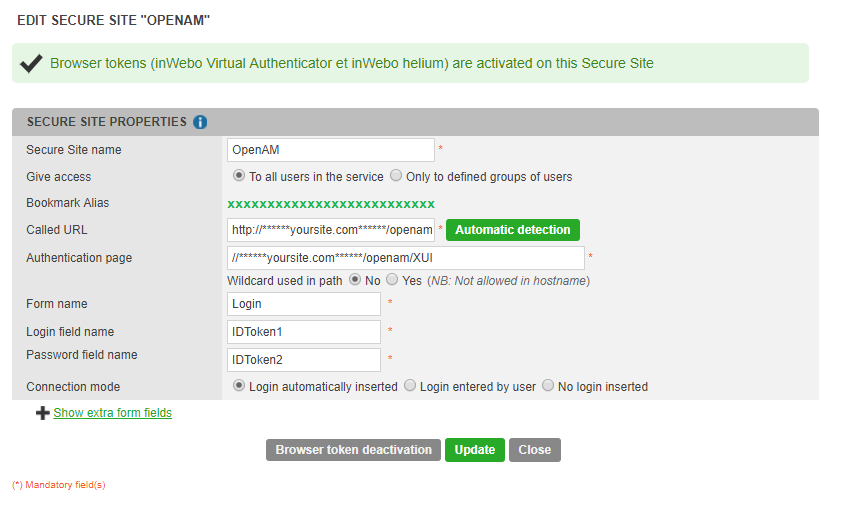

After the Browser token activation, record the "Bookmark Alias" (displayed here in green) for later use.

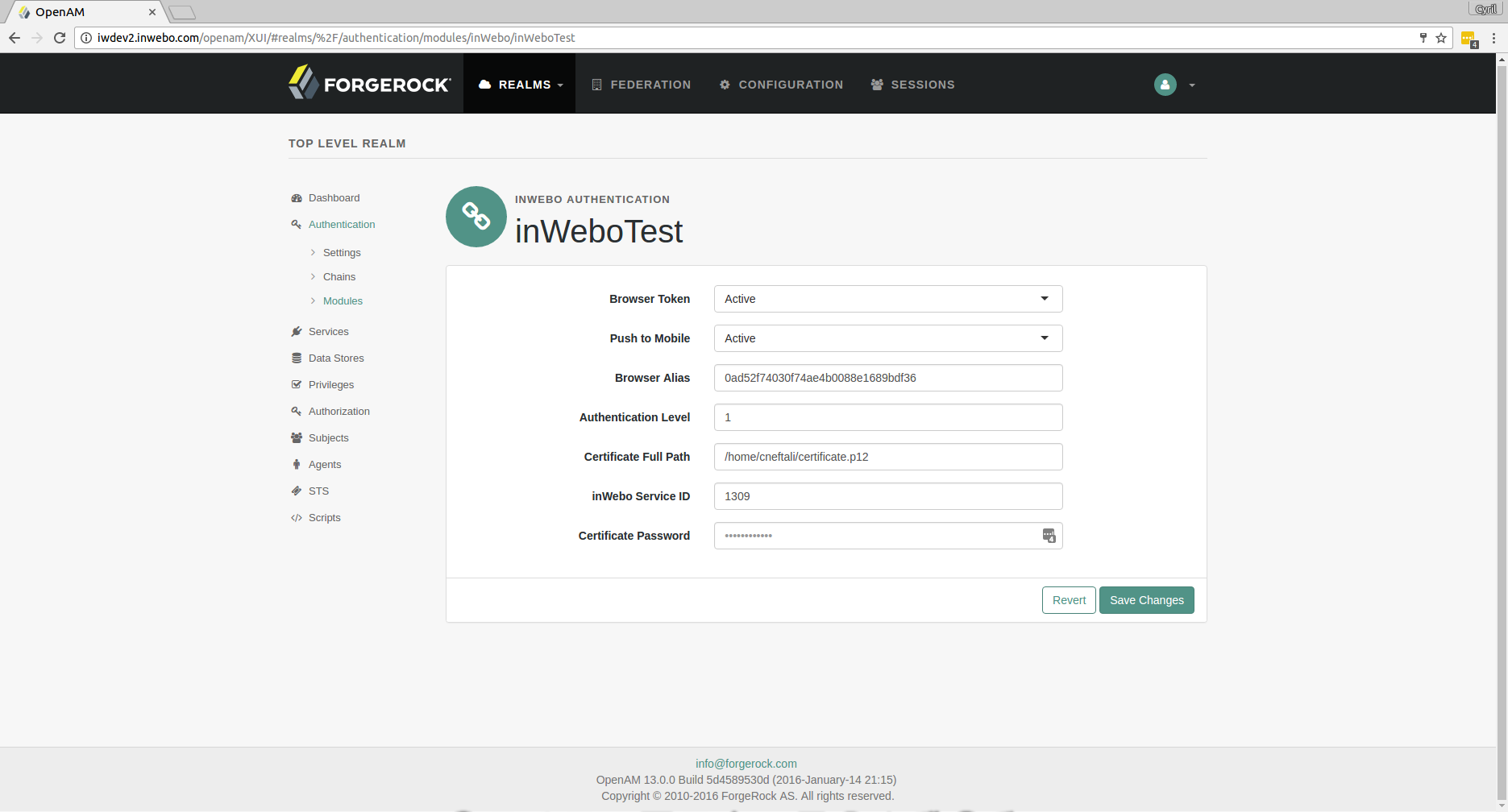

Configuration of inWebo connector in OpenAm

To configure inWebo authentication in OpenAM:

go to OpenAM Admin console and log in as 'amadmin'
navigate to {REALM}→Authentification→Modules

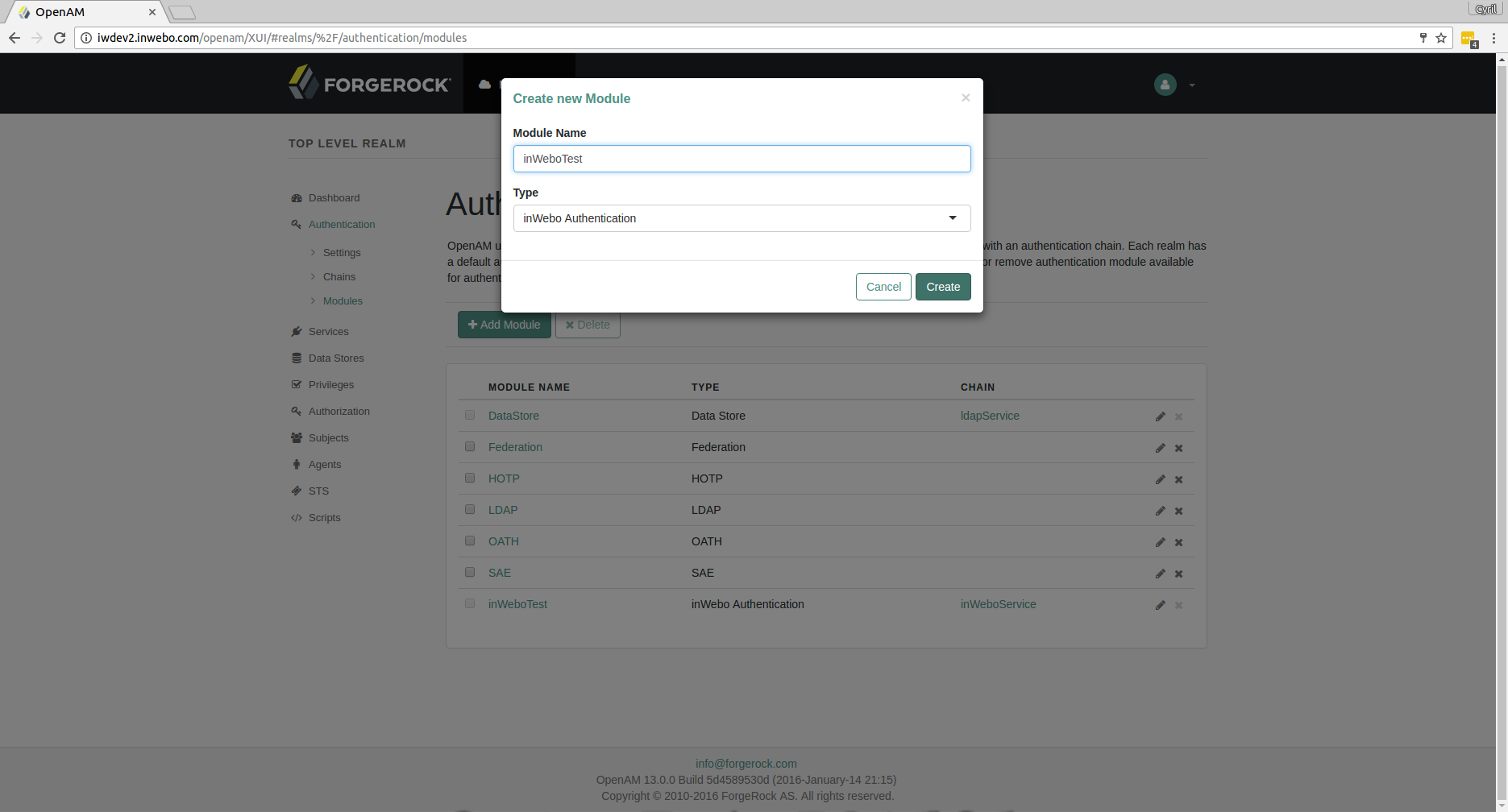

add new module with inWebo Authentication Type

Testing Configuration

To test the configuration, go to:

1. With UI (if XUI is disabled)

XML

http(s)://{OPENAM_HOST}/openam/UI/Login?module=inWeboTest //if you are using the openAM UI

2. With XUI

XML

http(s)://{OPENAM_HOST}/openam/XUI/#login/&module=inWeboTest //if you are using the openAM XUI

How to disable XUI

To disable XUI:

go to OpenAM Admin console and log in as 'amadmin'
navigate to Configuration→Authentication→Core→Global Attributes
uncheck the 'XUI Interface' attribute

UI Customization

To develop and customize the UI in a faster manner, disable the cache as follow:

go to OpenAM Admin console and log in as 'amadmin'
go to Configuration→Servers and Sites→Server Name→Advanced
set 'org.forgerock.openam.core.resource.lookup.cache.enabled' to false

NOTE: For production servers, leave the parameter set to the default value, true

Debug

To display debug information, goto

XML

http(s)://{OPENAM_HOST}/openam/Debug.jsp
