mAccess WEB version 3.5.1

The mAccess inWebo Library (WEB) is a small JavaScript library that lets you perform simple operations (OTP, Activation, PIN or password operations..) with your inWebo service.
This document explains how to add "simple-neon-lib.js" to your site.

What's new in mAccess Web library?

  • mAccess Web now offers the possibility to use "passwords"

  • mAccess Web is now available for "Legacy" and "White label" services type

  • When using mAccess Web for password syntax and function names do not change, the "pin" variable accepts now pin or password based on your inWebo service settings

  • The sealing function is now available in mAccess Web for "white label" type service and password mode

  • A behavior change: The InitOnline function is not blocked on error when checking users accounts

Prerequisites / Before we start

  • An inWebo service

  • A valid "Alias" for a secure site for this service, and requested during script initialization

mAccess inWebo Library (WEB) - script elements

Calling mAccess inWebo Library (WEB)

JS
<script src="https://ult-inwebo.com/neon/3.5.1/simple-neon-lib.js" type="text/javascript"></script>

mAccess inWebo Library (WEB)  Library SHA

JS
https://ult-inwebo.com/neon/3.5.1/simple-neon-lib.js.sha256.txt

mAccess inWebo Library (WEB)  - script initialization

JS
 window.onload =  function() {
        neon = new Neon.Neon('******* Bookmark alias *******', '**** applicationDescription **** ');

        neon.initOnline()
        .then(logins => {
            console.info('login list : ', logins);
        })
        .catch(e => {
            console.error('Error during initialization', e);
        });
    };

Initialization parameters:

  • {string} alias The Bookmark ALIAS associated to the webapp / generated in the Secure site tab of the inWebo Administration console

  • {string} applicationDescription The description of the application

Results

Allows you to Initialize the Neon library and returns a promise that handles a logins array.
This array contains all the accounts already enrolled and active for this alias in this browser

List of available operations with mAccess inWebo Library (WEB)

Since inWebo library (WEB) version 3.4.0, each operations are available for Standard and White label service with PIN or password following your service settings

  • activateWithPin(activationCode, pin)

  • getOnlineOtpWithPin(login, pin, success, error)

  • getOfflineOtpWithPin(login, pin, success, error)

  • getActivationCodeWithPin(login, pin, success, error)

  • getAccessTokenWithPin(login, pin, success, error)

  • unlockTokenWithPin(login, unlockCode, pin, success, error)

  • changePin(login, oldPin, newPin, success, error)

  • resetPin(login, resetCode, newPin, success, error)

  • sealDataWithPin(login, pin, data, success, error)

Operation with mAccess inWebo Library (WEB)

activateWithPin

CODE
neon.activateWithPin(activationCode, pin)
JS
     /****************** activateWIthPin *******************/
    function activate(activationCode, pin) {
        console.log('activate', activationCode, pin);
        document.getElementById('activationResult').innerHTML = '';
        neon.activateWithPin(activationCode, pin).then(displaylogin).catch(e => displayActivationError(e));
    }
CODE

Enroll an account in this brower
     * {string} activationCode The activation code delivered by InWebo service
     * {string} pin The user's PIN code or password of the account
     * {function} onSuccess The success callback
     * {function} onError The error callback
     * returns Nothing if onSuccess and onError are defined,
CODE
or a Promise that handles the login of this account

Refreshing the Login list after a restore operation

When using the initOnline () function and after a restore operation of a user account (activation with a restore code), it is important to restart the initOnline () operation just after the activation in order to refresh the list of displayed logins.

  • As defined in the Demo page, in the Activate function on « displayActivationSuccess » you have to launch initNeon() to perform neon,initOnline () again

  • If this update is not performed, the previous login(token) will remain visible and displayed twice in the list of users.

getActivationCodeWithPin

CODE
neon.getActivationCodeWithPin(login, pin, success, error)
JS
     /****************** getActivationCode *******************/
    function getActivationCode(login, pin) {
        console.log('getActivationCode', login, pin);
        displayActivationCode('');
        neon.getActivationCodeWithPin(login, pin, displayActivationCode, displayActivationCodeError);
    }
CODE

Get an activation CODE for an enrolled user
    * {string} login The login of the account
    * {string} pin The user's PIN code or password of the account
    * {function} onSuccess The success callback
    * {function} onError The error callback
    * returns Nothing if onSuccess and onError are defined,
CODE
or a Promise that handles the generated Activation code

getOnlineOtpWithPin

CODE
neon.getOnlineOtpWithPin(login, pin, success, error)
JS
     /****************** getOnlineOtp *******************/
    function getOnlineOtp(login, pin) {
        console.log('getOtp', login, pin);
        displayOtp('');
        neon.getOnlineOtpWithPin(login, pin).then(displayOtp).catch(e => displayOtpError(e));
    }
CODE

Generate an OTP
     * {string} login The login of the account
     * {string} The user's PIN code or password of the account
     * {function} onSuccess The success callback
     * {function} onError The error callback
     * returns Nothing if onSuccess and onError are defined,
CODE
or a Promise that handles the generated OTP

getOfflineOtpWithPin

CODE
neon.getOfflineOtpWithPin(login, pin, success, error)
JS
     /****************** getOfflineOtp *******************/
    function getOfflineOtp(login, pin) {
        console.log('getOfflineOtp', login, pin);
        displayOtp('');
        neon.getOfflineOtpWithPin(login, pin, displayOfflineOtp, displayOfflineOtpError);
    }
CODE

Generate an OTP
     * {string} login The login of the account
     * {string} pin The user's PIN code or password of the account
     * {function} onSuccess The success callback
     * {function} onError The error callback
     * returns Nothing if onSuccess and onError are defined,
CODE
or a Promise that handles the generated OTP

getAccessTokenWithPin

CODE
neon.getAccessTokenWithPin(login, pin, success, error)
JS
     /****************** getAccessToken *******************/
    function getAccessToken(login, pin) {
        console.log('getAccessToken', login, pin);
        displayAccessToken('');
        neon.getAccessTokenWithPin(login, pin, displayAccessToken, displayAccessTokenError);
    }
CODE
Generate an JWT AccessToken
     * {string} login The login of the account
     * {string} pin The user's PIN code or password of the account
     * {function} onSuccess The success callback
     * {function} onError The error callback
     * returns Nothing if onSuccess and onError are defined,
CODE
or a Promise that handles the generated JWT AccessToken

unlockTokenWithPin

CODE
neon.unlockTokenWithPin(login, unlockCode, pin, success, error)
JS
      /****************** unlockToken *******************/
     function unlockToken(login, unlockCode, pin) {
        console.log('unlockToken', login, unlockCode, pin);
        document.getElementById('unlockTokenResult').innerHTML = '';
        neon.unlockTokenWithPin(login, unlockCode, pin, displayUnlockToken, displayUnlockTokenError);
    }
CODE
Unlock an enrolled user
     * {string} login The login of the account
     * {string} unlockCode The unlock code delivered by InWebo service
     * {string} pin The user's PIN code or password of the account
     * {function} onSuccess The success callback
     * {function} onError The error callback
     * returns Nothing if onSuccess and onError are defined, or a Promise

changePin

CODE
neon.changePin(login, oldPin, newPin, success, error)
JS
    /****************** changePin *******************/
    function changePin(login, oldPin, newPin) {
        console.log('changePin', login, oldPin, newPin);
        document.getElementById('changePinResult').innerHTML = '';
        neon.changePin(login, oldPin, newPin).then(displayChangePin).catch(e => displayChangePinError(e));
    }
CODE

Change the pin of an account
    * {string} login The login of the account
    * {string} oldPin The OLD user's PIN code or password for this account
    * {string} newPin The NEW user's PIN code or password for this account
    * {function} onSuccess The success callback
    * {function} onError The error callback
    * returns Nothing if onSuccess and onError are defined, or a Promise

resetPin

CODE
neon.resetPin(login, resetCode, newPin, success, error)
JS
     /****************** resetPin *******************/
    function resetPin(login, resetCode, newPin) {
        console.log('resetPin', login, resetCode, newPin);
        document.getElementById('resetPinResult').innerHTML = '';
        neon.resetPin(login, resetCode, newPin).then(displayResetPin).catch(e => displayResetPinError(e));
    }
CODE

Reset the pin of an account
    * {string} login The login of the account
    * {string} resetCode The reset code generated for this user / in the Administration console
    * {string} newPin The NEW user's PIN code or password for this account
    * {function} onSuccess The success callback
    * {function} onError The error callback
    * returns Nothing if onSuccess and onError are defined, or a Promise

sealDataWithPin

CODE
neon.sealDataWithPin(login, pin, data, success, error)
JS
     /****************** sealData *******************/
    function sealData(login, pin, data) {
        console.log('sealData', login, pin, data);
        displaySealData('');
        neon.sealDataWithPin(login, pin, data).then(displaySealData).catch(e => displaySealDataError(e));
    }
CODE

Seal data
    * {string} login The login of the account
    * {string} pin The user's PIN code or password of the account
    * {string} data The data to seal
    * {function} onSuccess The success callback
    * {function} onError The error callback
    * returns Nothing if onSuccess and onError are defined,
CODE
or a Promise that handles the sealed data

Simple integration for a demo page using mAccess inWebo Library (WEB)


Prerequisite

  • An inWebo service:

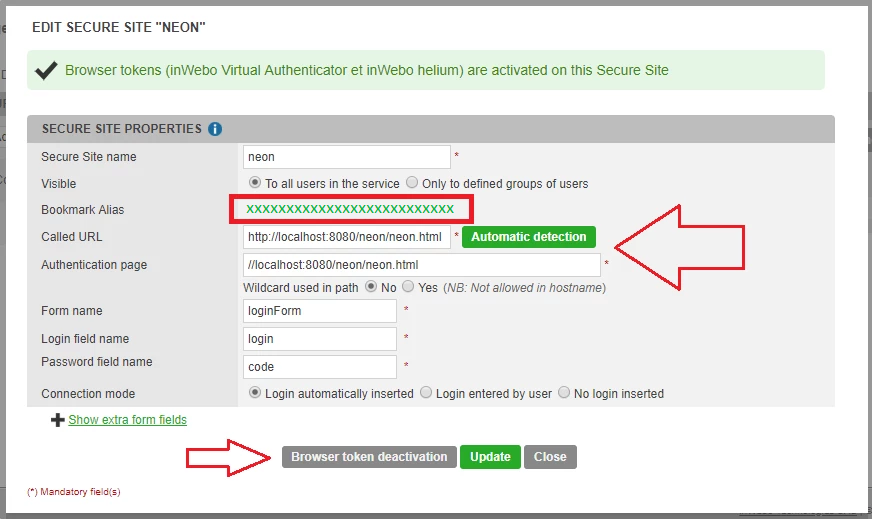

Creating a secure site Alias for your "mAccess Web" page  on the inWebo Administration console

In your inWebo Administration console, in the "secure site" tab, in the first column,
+ Add a secure site type... "Web services"

In the Authentication page indicate the URL address page using mAccess Web JS library
Select "Browser Token Activation" to generate a Bookmark Alias.
Save this Bookmark ALIAS to use in your page for initiating mAccess Web JS library

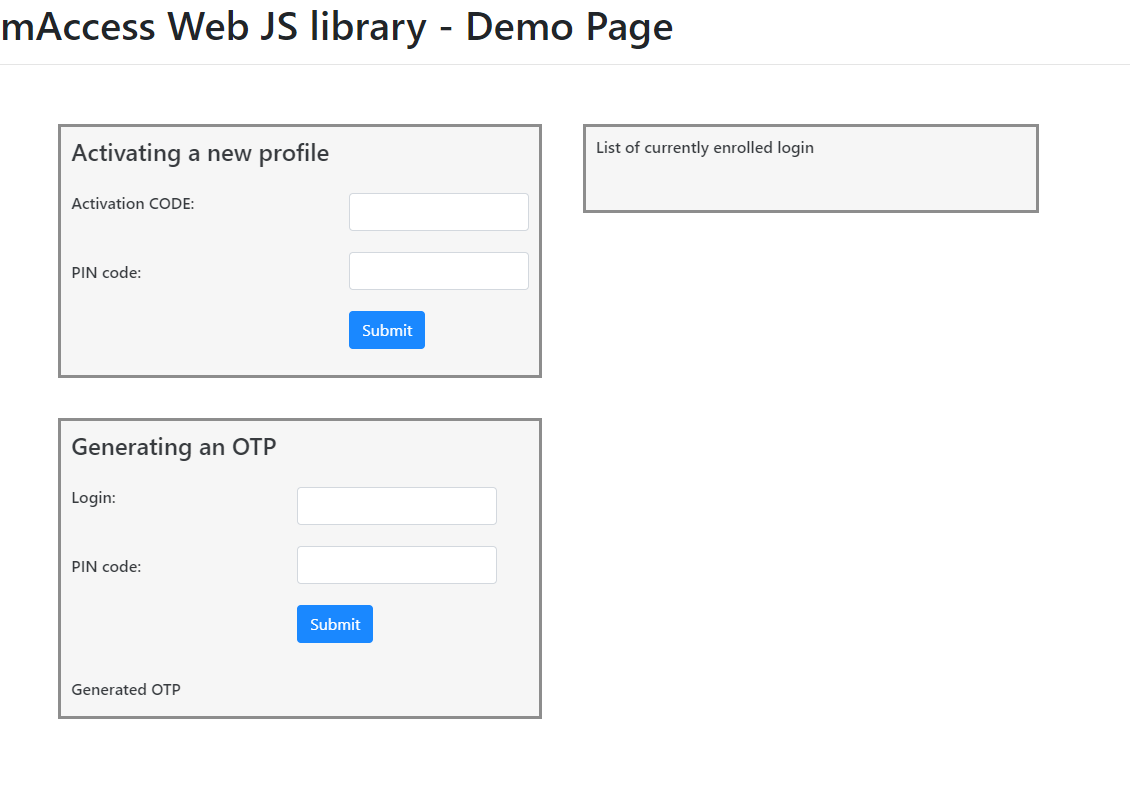

Demo page using  mAccess inWebo Library (WEB)

You will find below a simple page for Activating a new user, listing existing profiles and generating an OTP

Sample page
XML
<html lang="en">
    <head>
        <meta charset="utf-8"/>
        <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/css/bootstrap.min.css" integrity="sha384-ggOyR0iXCbMQv3Xipma34MD+dH/1fQ784/j6cY/iJTQUOhcWr7x9JvoRxT2MZw1T" crossorigin="anonymous">

        <title>inWebo mAccess inWebo Library (WEB)</title>
    </head>

    <body>
        <div id="libError"></div>
        <h1>mAccess inWebo Library (WEB) - Demo Page</h1>
        <hr>
        <div style="position:fixed; top: 15%; left: 5%;">
        <div class="form-group" style="background-color: #F5F5F5; width=420; border=yes; border-style: solid;     border-color: grey; border-width=20; opacity: 0.90; filter: alpha(opacity=85)">
        <table border=0 cellpadding="10">
            <tr>
            <td>
            <h4>Activating a new profile</h4>
            </td>
            </tr>
                <tr>
                    <th width="220" align=Left border=0 valign=top>
                        <h6>Activation CODE:</h6>
                        <BR>
                        <br>
                        <h6>PIN code:</h6>
                        <BR>

                    </th>
                    <th width="200" align=Left>
                        <form action="#">
                            <input class="form-control" type="text" name="code">
                            <br>
                            <input class="form-control" type="text" name="pin">
                            <br>
                            <input class="btn btn-primary" type="button" onclick="activate(code.value, pin.value)" value="Submit">
                        </form>
                    </th>
                </tr>
            </table>
            </div>
        <br>
        <div class="form-group" style="background-color: #F5F5F5; width=420; border=yes; border-style: solid;     border-color: grey; border-width=20; opacity: 0.90; filter: alpha(opacity=85)">
            <table border=0 cellpadding="10">
            <tr>
                <td>
                <h4>Generating an OTP</h4>
                </td>
            </tr>
                <tr>
                    <TD width="160" align=Left valign=top border=0>
                        <h6>Login:</h6>
                        <br>
                        <br>
                        <h6>PIN code:</h6>

                    </td>
                    <th width="220" align=Left>
                        <form action="#">
                            <input class="form-control" type="text" name="login">
                            <br>
                            <input class="form-control" type="text" name="pin">
                            <br>
                            <input class="btn btn-primary" type="button" onclick="getOnlineOtp(login.value, pin.value)" value="Submit">
                            <br>

                        </form>
                    </th>
                </tr>
                <tr>
                    <TD width="160" align=Left border=0>
                        <h6>Generated OTP</h6>
                    </td>
                    <td valign=top >
                        <div id="otpResult"></div>
                    </td>
                </tr>
            </table>
        </div>

        <div class="form-group" style="position:fixed; top: 15%; left: 50%; width=450; background-color: #F5F5F5; border=yes; border-width=20; border-style: solid;
    border-color: grey; opacity: 0.90; filter: alpha(opacity=85)">
        <table border=0 cellpadding="10" width="450">
            <tr>
                <td width="450">
                    <h6>List of currently enrolled login</h6>
                </td>
            </tr>
                <tr>
                    <TD width="20" align=Left valign=top border=0>
                        <p></p>
                    </td>

                    <th width="400" align=Left>
                        <div id="logins"></div>
                    </td>
                </tr>
            </table>
        </div>


        <div class="toast">
            <p>
            <div class='error' id='otpError'>
            </div>
            </p>
        </div>


        <script src="https://ult-inwebo.com/neon/3.5.1/simple-neon-lib.js" type="text/javascript"></script>


        <script type="text/javascript">

    var neon;

    /****************** getOnlineOtp *******************/
    function getOnlineOtp(login, pin) {
        console.log('getOtp', login, pin);
        displayOtp('');
        neon.getOnlineOtpWithPin(login, pin).then(displayOtp).catch(e => displayOtpError(e));
    }
    function displayOtp(otp) {
        document.getElementById('otpResult').innerHTML = otp;
    }
    function displayOtpError(error) {
        console.log(error);
    }

        /****************** activate *******************/
    function activate(activationCode, pin) {
        console.log('activate', activationCode, pin);
        neon.activateWithPin(activationCode, pin).then(displaylogin).catch(e => displayActivationError(e));
    }
    function displaylogin(login) {
        let logins = document.getElementById('logins');
        if(logins.innerHTML != '') {
            logins.innerHTML += ', ';
        }
        logins.innerHTML += login;
    }
    function displayActivationError(error) {
        console.log(error);
    }

    /****************** Neon Init *******************/
        window.onload =  function() {
        // dev
         neon = new Neon.Neon('******BOOKMARK_ALIAS******', 'sample IHM');

        neon.initOnline()
        .then(logins => {
            document.getElementById('logins').innerHTML = logins;
        })
        .catch(e => {
            console.error('Error during initialization', e);
        });

    };

        </script>
    </body>
</html>

Displaying the Demo page

Available operations

  • In this page you can add a new user profile/login to this web browser
    with an Activation code given to a user (from the inWebo administration console, the API or IWDS)
    You 'll be able to add a new user which has to create a new PIN/password or an existing user with his current PIN/password.

  • If enrolled in this browser the user can be displayed and will be shown in the list of currently enrolled logins

  • An enrolled user will then be able to generate an OTP with his login and PIN/password

  • this OTP with a 20s lifetime should then be sent to the inWebo platform for authentication through the API/RADIUS...

Error codes

ERROR VALUES

USER_IS_BLOCKED,

USER_IS_NOT_BLOCKED,

USER_MULTI_CUSTOMER,

USER_NOT_MONO_SERVICE,

USER_ENTRY_DOES_NOT_EXIST,

APP_ALIAS_ENTRY_DOES_NOT_EXIST,

PUSH_ALIAS_ENTRY_DOES_NOT_EXIST,

TOKEN_IS_BLOCKED,

TOKEN_IS_NOT_BLOCKED,

TOKEN_TYPE_IS_NOT_SUPPORTED,

TOKEN_HAS_NO_BIO_KEY_AND_SERVICE_MUST_USE_BIOKEY,

THIS_KEYTYPE_IS_NOT_ALLOWED,

STATIC_TOKEN_KEY_IS_INVALID,

DYNAMIC_TOKEN_KEY_IS_INVALID,

MAX_NB_TOOLS,

NO_ACTIVE_SERVICE_FOR_USER,

NO_PASSWORD,

PASSWORD_IS_WRONG,

BIO_KEY_IS_WRONG,

BIO_KEY_ALREADY_EXIST,

NO_DEVICE_FOUND,

NOT_MACHINE,

DEVICE_LOCKED,

NO_ACCESS,

MACID_IS_UNKNOWN,

CODE_TYPE_NOT_SUPPORTED,

CODE_ENTRY_DOES_NOT_EXIST,

CODE_IS_NOT_ALLOWED_FOR_THIS_TOKEN,

ACCOUNT_DATA_DOES_NOT_EXIST,

TOKEN_DATA_DOES_NOT_EXIST,

SEALING_IS_NOT_ALLOWED,

SEALDATA_IS_NOT_VALID,

PIN_REFUSED



JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.
