inWebo LDAP Proxy v1.2.0

The inWebo LDAP proxy allows you to add strong authentication via the InWebo service.

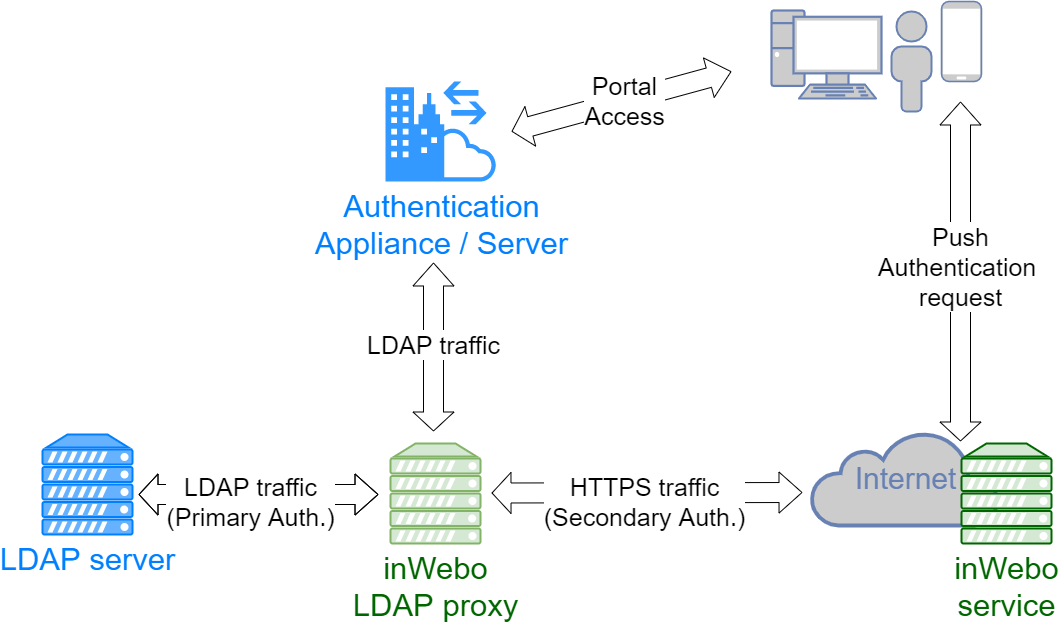

Its role is to transmit the LDAP requests to the LDAP server. When a Bind request from the LDAP server is returned successfully, a PUSH request is sent to the InWebo server. The user is then prompted to authenticate (PIN code, fingerprint, etc) on his previously registered device.

If the PIN is correct, the LDAP proxy finalizes the Bind request and the user is authenticated.



The machine hosting the proxy must have:

  • Access to the LDAP server that will need to be synchronized with the inWebo proxy

  • Internet access to reach the InWebo API


Windows or Linux

  • 64-bit environment

  • JAVA 8 64 bits for the version without JRE


  • .P12 certificate and passphrase from local Authority


For Linux operating systems

Retrieve the Linux version:  proxy-ldap-packaging-X.Y.Z-linux64.tar.gz

  1. Unpack the archive

  2. Create the config/ file from the file

  3. Complete the config/ file (see below)

  4. Start the proxy

Version using the JRE installed on the system


Version using built-in JRE


inWebo proxy service start and stop

If your LDAP proxy listens for services numbered under 1024, you must start the proxy service with a root / administrator user.

Lauching the Proxy service in background mode
sudo ./ &
Stopping the Proxy service
sudo ./

Proxy installation as a Linux service (requires administrator rights)

  1. Edit bin/iw_ldap_proxy by replacing

    1. @iw_ldap_proxy_installation_dir@ by the path of the installation directory

    2. @iw_ldap_proxy_user@ by the user who runs the program

  2. Installation

    sudo cp bin/iw_ldap_proxy /etc/init.d/

  3. Start the proxy

    sudo /etc/init.d/iw_ldap_proxy start

  4. Stop the proxy

    sudo /etc/init.d/iw_ldap_proxy stop

For Windows operating systems

Retrieve the Windows version:

  1. Unpack the archive

  2. Create the config/ file from the file

  3. Complete the config/ file (see below)

  4. Start the proxy

Version using the JRE installed on the system


Version using the built-in JRE


Proxy installation as a Windows service (requires administrator rights)


.NET Framework 4.0


bin\ldap_proxy_service.exe install

Service start

sc start "inWebo LDAP proxy"

Service stop

sc stop "inWebo LDAP proxy"

Uninstalling the service

bin\ldap_proxy_service.exe uninstall

Tests and troubleshooting inWebo LDAP Proxy Configuration

2 additional commands are included for Linux and Windows:

Testing Push and inWebo certificate in command line

run_standalone -doPush <login_inWebo>

Allows you to test directly the push Authentication of an inWebo login for your service and see if you are correctly notified with the current inWebo configuration (serviceID, inWebo Certificate, Passphrase)

run_standalone -validateConfiguration <DN>(ex: run_standalone -validateConfiguration CN=Administrator,CN=Users,DC=Domain,DC=test)

will allow you to test if the LDAP configuration and the Bind command is successful

How to configure your LDAP authentication

This application is used to transfer LDAP search/authentication request to the real authentication LDAP and if accepted it will send an additional authentication request in HTTPS to the inWebo platform.
This additional request is based on the user attribute defined in the proxyLDAP configuration and retrieved from the user profile (uid, cn, samAccount, userPrincipleName)

Creating the LDAP credentials (DN) for Binding requests on LDAP server

To bind the LDAPproxy to the target LDAP server it is recommended to indicate or even create a whitelisted DN/Account used to search the LDAP.
ex: CN=ReadOnly,CN=Users,DC=domain,DC=test

This profile will be used as credentials with the LDAP and should not trigger inWebo push authentication each time you send a request tio the LDAP server.

Modifying file of your LDAP proxy / Minimal Configuration

ldap.proxy.port=389 (the service number of the proxy LDAP is listening to accept requests/ default ) (IP address or Name of the LDAP server to send the request to)
ldap.port=389 (the service number of the proxy LDAP is listening to accept requests/ default ) ( your inWebo service ID)
inwebo.service.certificate.path=C:\ProxyLDAP\inWebo_Certificate12 or./proxyLDAP/inWebo_Certificate12 (the path of the inWebo P12 certificate generated by your inWebo Administration console)
inwebo.service.certificate.passphrase=PASSPHRASE (the password/passphrase of the inWebo certificate)

Whitelisting the LDAP credentials (DN) in the


This configuration should be replicated on the Appliance/authentication server that will send the request to the LDAPproxy

Modifying the Appliance / authentication portal to send requests to your LDAP proxy

When configuring the LDAP server on your Appliance / Authentication portal

if an existing configuration already exists to authenticate on the LDAP server, you can duplicate and only replace the IP Address by the address of the LDAP proxy.
Be sure to verify that the LDAP Credentials (DN) / used by this appliance are whitelisted on the LDAP proxy.

Creating the Appliance / authentication portal configuration to send request to your LDAP proxy

if there is no existing profile / Basically you have to indicate the following information:

  • you have to indicate for a new LDAP authentication server:
    the IP address of the LDAP proxy

  • the LDAP proxy service number (as indicated previously)

  • the Base DN of the LDAP server ex: DC=domain,DC=test

  • the group DN of the LDAP users if existing  ex: CN=inWebo,OU=New_York,

  • the LDAP credentials DN used previously (ldap.proxy.whitelist.dn)  CN=ReadOnly,CN=Users,DC=domain,DC=test
    with the corresponding password

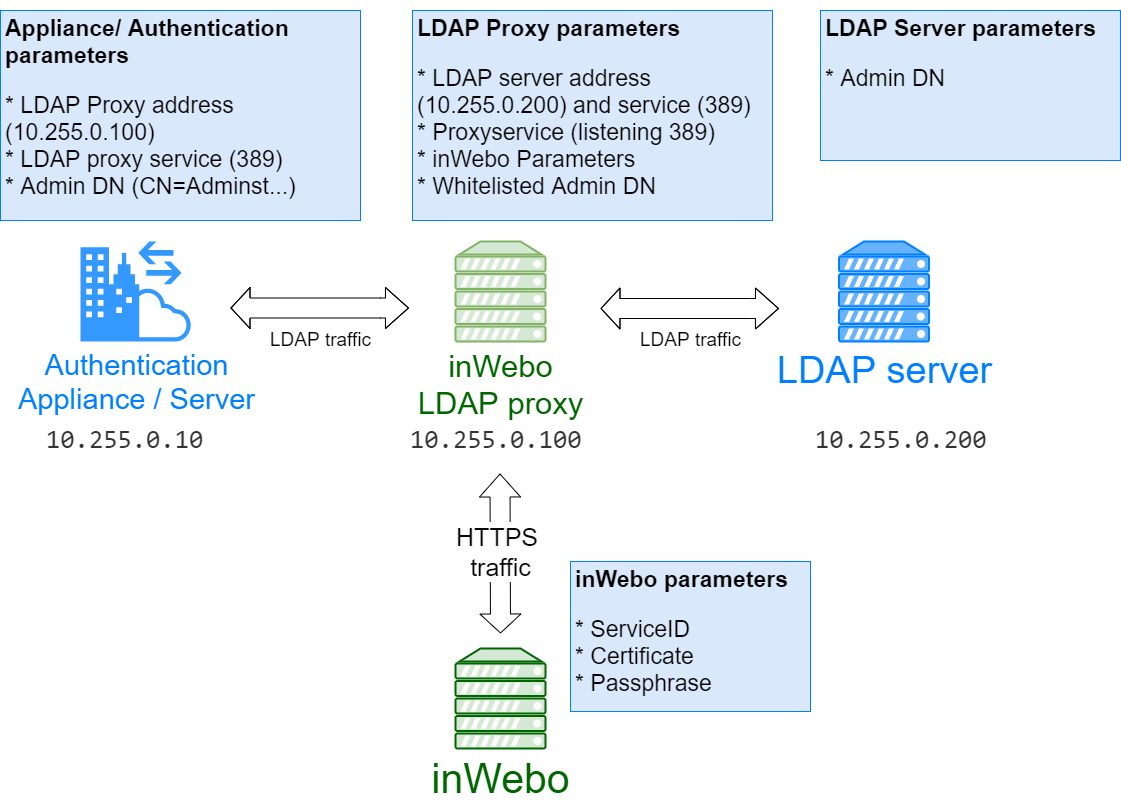

Summary of configuration items to modify

LDAP proxy Configuration settings

The following settings are in the config / file


LDAP proxy's own IP addresses and service

Listening IP addresses, used by the LDAP proxy (List of IP/hostname separated by ";" - the LDAP proxy is listening to all registered IP addresses by default)

# Listening port for the LDAP proxy

# Listening port for the LDAP proxy to handle LDAPS requests

IP addresses and service of the targeted LDAP server

# LDAP server address/hostname

# LDAP server port
# Required if ldap.proxy.port is set

# LDAPS server port

LDAPS configuration and local Keystore

# full path to a p12 certificate associated with the LDAP

# LDAP certificate passphrase

# Mode of server certificate verification
# jvm by default
# jvm : use the JVM keystore
# none : trust all server certificates
# keystore : use a specific keystore define by ldap.ssl.certificate.keystore et ldap.ssl.certificate.passphrase

# The path of the keystore to use when ldap.ssl.certificate.verification.mode=keystore

# The keystore pass associated to ldap.ssl.certificate.keystore.path


Base configuration (service ID, certificate path and passphrase)

# InWebo service ID

# full path to the p12 certificate associated with the InWebo service

# inWebo certificate passphrase

LDAP Attribute on the requested User profile, used to match with the inWebo login (uid, cn, samAccount, userPrincipalName..)

can be different from initial login request

# LDAP attribute for user login (will be matched with InWebo login), # uid by default

LDAP Group, DN, conditions for inWebo Authentication

# Condition to authenticate users with InWebo
# all by default
# all : all user will be authenticated with inWebo
# none : no user will be authenticated with inWebo (transparent)
# user : user group membership. Based on the group list the user is member of
# group : user group membership. Based on the group member list

# LDAP group DN for which members will be required to authenticate with inWebo. Required if is set to "user" or "group"

# LDAP attribute for group members. Required when = group
# member by default

# LDAP attribute for group list. Required when = user
# isMemberOf by default. Use memberOf for AD

# LDAP objectClass attribute used to define a group
# groupOfNames by default

# LDAP objectClass attribute used to define a user
# person by default

Whitelisting of Admin and credentials used to bind and search

# Bypass inWebo authentification for a list of users (usefull for technical accounts)
# DN list separated by ";"

# 16 characters key used to cipher logins
# No cipher by default


additional configuration for on premise version and proxy support

# InWebo API URL
# by default

# Force ldap-proxy to contact inWebo through an http or https proxy
# HTTP proxy host used to call InWebo
# No HTTP proxy by default

# HTTP proxy port

# Use https to proxy
# false by default - http only (http://hostname:port)
# true - https only (https://hostname:port)

# HTTP proxy login - option

# HTTP proxy password - option
